Range of SEC Bag O Matic Tyre Curing Presses

SEC – BAGO 812 – 32”
SEC – BAGO 915 – 36”
SEC – BAGO 1050 – 42”
SEC – BAGO 1150 – 46”
SEC – BAGO 1310 – 55”

Specific Engineering Corporation manufactures a wide range of twin cavity platten type as well as dome type mechanical presses, capable of generating closing force upto 350 tonns and above per mould.

All presses are conventional double ended Bag-O-Matic type with capability for segmented mould for radial tyre.

The robust design of BAGO presses are flexible so as to incorporate customer needs and cover the entire range of tyres from scooter, motorcycles, passenger car, LCV, truck and OTR.

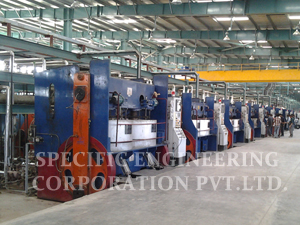

Tyre Curing Presses

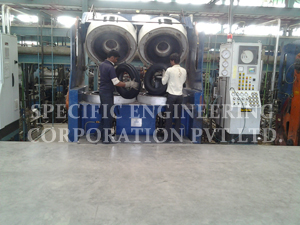

Tyre Curing Press

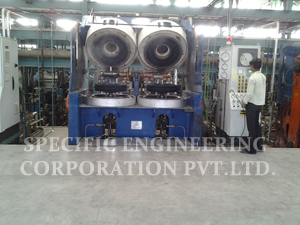

Tyre Curing Press

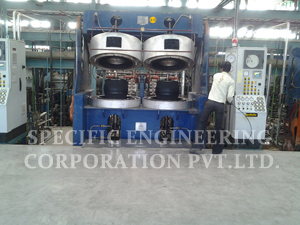

Tyre Curing Press With Motor Cycle Tyre
Typical Control Panel
Wall Battery With Instrumentation

Bag O Matic Tyre Curing Presses
Technical Description

Design of our presses is rugged and proven in industry. Our presses are adaptable to segmental molds. Basic structure is fabricated from M.S. Steel plates, Stress, relieved and machine on precision boring machine. Press is driven by high torque motor of reputed manufacture through precision gear box and precision hobbed gear and pinion.

Operation of press is fully automatic. The cycle time for opening, closing and curing is controlled through limit switch and electronic timer / PLC. Valves used are Vita / Rocky / Sasco make. Center mechanism is made from stainless steel material. Press is centrally lubricated

Machine Features

Single or double acting center mechanism offers precise control and maximum efficiency, advantage of quicker bladder change, reduced mould damage, increased bladder life, ease of maintenance and increased productivity. The rigid center post assures that the bladder is centered with green tyre and will remain centered during shaping and curing cycle. It located top clamp ring with upper tyre bead to assure tyre uniformity and positive bladder centering.

Since bladder is effectively retained at the bottom and top, the tyre is shaped in a concentric motion and ensures high bladder life.

The Piping is complete in all respect for internal curing, shaping, platen heating and hydraulic system with instrumentation to control the process electro-pneumatically in all respect as per P and I diagram.

The instrumentation Panel Can be operated in complete Auto / Manual / Hand Mode.



Technical Data Sheet

Technical Data

BAGO 812

BAGO 915

BAGO 1050

BAGO 1150

BAGO 1310 -DOME

General Press Size – inches

32

36

42

46

55

Number of Cavities

2

2

2

2

2

Tyre Size

8” & 10” scooter
8”Auto Rickshaw

8”,10”,16”19”-Moped, Passenger & Motor Cycle

Passenger, LCV,ADV upto 19”Tyre

LCV,ADV upto 8.25-20” Tyre

LCV,ADV truck upto 1000-20 Tyre

Closing Force – kgs/lbs

70000/154000

90000/198000

140000/300000

170000/374000

300000/660000

Platen Diameter-mm/inches

810/32”

915//36”

1060/42”

1170/46”

1310/55”

Dome inside Diameter – mm

815

925

1070

1200

1400

Min/Max Mould Height-mm (inches)

120(5”)/250(10”)

120 (5”)/300(12”)

120 (5”)/330(11”)

200 (8”)/425(17”)

250 (10”)/450(18”)

Max Gree Tyre Height-mm/inches

320/13”

450/18”

500/20”

550/22”

650/26”

Pneumatic Air Connected Load

9kw

9kw

15kw

17kw

17kw


APPLICABLE TO ALL MODELS ALIKE
UTILITIES



External Steam



Pressure

Max 10 kg/degree

Consumption

Approx 1 kg/degree

Pneumatic Air (Instrument)



Pressure

Max 8kg/cm sq, Control air –1.5 to 2kg/cm/sq

Consumption

5 to 6 Nm3/hr, Control air 1Nm3/Hr

Electric Supply

415v, 3 phase, 65 amp-feeder

Hydraulic Water



Pressure

18 to 30 kg/c sq

Consumption

30 lts/cycle, 35lts/cycle

Shaping Steam



Pressure

4.00 kg/cm sq

Consumption

2 kg/hr

Internal Steam / Hot Water



Pressure

Max 20.00kg/cm/sq

Consumption

6 kgs/kg of cure Product


External Steam For Pre-Heating



Consumption

80kgs/hr

Pre-heating Period

20min

Bare Press



Mould Ht Adjustment Mechanism

1 set

Heating Platens

4 Nos

Insulating Plates Imported

4 Nos

Insulating Hoods

2 Sets

Emergency Bar

1 No

Indigenous Auto Lubrication System with loader indicating Passage

1 Set

Main drive motor with DC brakes & thermistor embedded in winding Gear box- David Brown/Shanti/EQA

1 Set

Bladder Cylinder (Double acting stainless steel welded back control mechanism of 4 sizes 73mm, 90mm, 125mm, 175mm, tailored to suit the mounting dimensions of tyre curing presses

1Set Of 2 Nos For All the presses

Tyre Ejector Cylinder (SS water hydraulic cylinder of bore 100mm, 125mm, 150mm or 250mm as per requirement.

1 Nos for 32” & 36”
1 Nos For 42”, 46”, 55”

Pressure Switch

1 Set

Single Pressure Shaping Control Panel

1 Set for 42:, 46”, 55”
